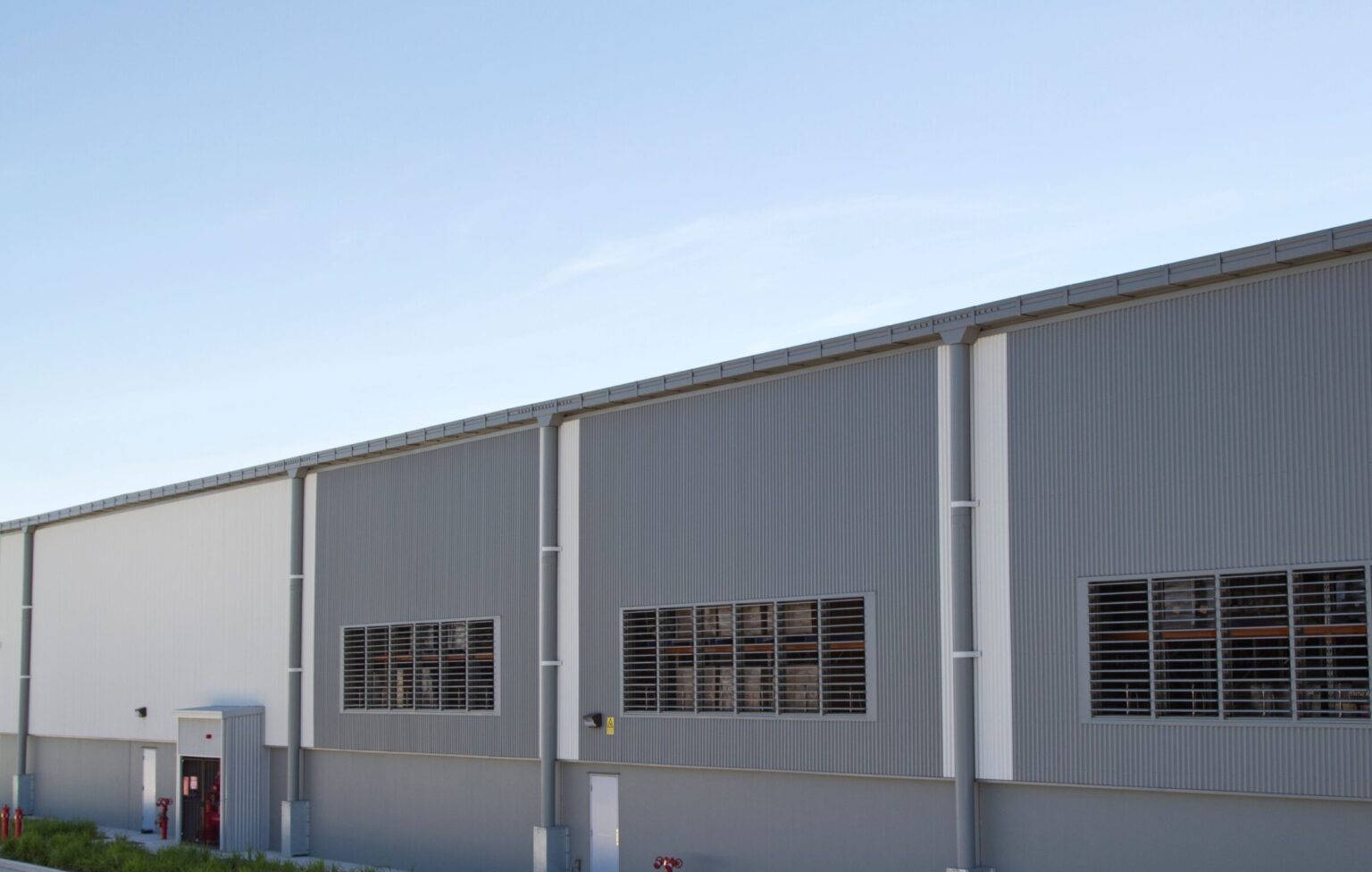

Y Series (Wall)
Airocle’s Y Series is an excellent natural pressure-relief ventilation solution in situations where fast ventilation may be needed.
When safety is a priority
Our experienced team of engineers have specifically designed the Y Series vents to be simple, efficient and fail-safe.
Featuring an integrated counterweight-activated blade system, the Y Series wall vents provide rapid, reliable and effective relief from over-pressurisation from within a building.
When the ventilator experiences a rise in pressure, it responds ultra-fast, allowing for the release of expanding heated gases and optimising the safety of your structure. The louvres re-close after operation.
Contact Us
Featuring an integrated counterweight-activated blade system, the Y Series wall vents provide rapid, reliable and effective relief from over-pressurisation from within a building.
When the ventilator experiences a rise in pressure, it responds ultra-fast, allowing for the release of expanding heated gases and optimising the safety of your structure. The louvres re-close after operation.
Key Benefits
Why Choose Airocle Y Series Wall Louvre
Highly Reliable
Our natural ventilation systems are backed by over 90 years of research, testing, and innovation — delivering reliable, long-term airflow solutions that have been proven across Australia’s most demanding building environments.
Optimal airflow
Exceptionally crafted to facilitate robust airflow for ventilation and smoke exhaust, while mantaining the low-profile
A Fail-Safe Solution
With fail-safe automatic triggers and manual operation, our natural fire and smoke ventilators can be used year-round for optimal fresh indoor airflow.
Compliant to AS 2427
Materials and construction compliant to AS 2427 for Smoke & Heat release vents
Energy Efficient
Airocle roof ventilation systems are designed for passive performance, reducing total energy consumption by eliminating the need for powered fans. This translates into lower operational costs and improved energy efficiency across the building’s lifecycle.
Easy Installation
Manufactured in accordance with AS2427-1983, all roof ventilators are supplied in complete knocked-down form; packed and ready for hoisting. This means that they can be easily set up and installed yourself. Alternatively, you can lean on Airocle’s experienced team for installation.
Simple installation… Let us take care of it for you
Airocle understands design requirements mean flexibility is important. Y Series wall vents are thus fully customisable to suit your individual project needs and requirements.
The internal air pressure level at which the vents will open is able to be custom-modified from a standard level of 1.3kPa.
Remote control operating mechanisms are optional, while all exposed surfaces will be supplied in a colour of your choice. All units are supplied and shipped complete with flashings, cappings and drainage trays.
Airocle’s friendly team of engineers are available to discuss your particular design and pressure requirements, as well as provide an installation service. Simply contact us.
Minimal Maintenance
The Y series features ‘green’ economical design and is architecturally adept to provide for a sustainable future.
Once installed, Y Series wall ventilators are able to operate with low running and maintenance costs, providing long-term operational savings for both the building and the environment.
Airocle is available to consult with you on your individual project needs and is able to advise on the most efficient design scheme, and to solve any specific problems raised by architects, consulting engineers, and plant engineers.
Specifications
Y Series Performance
- External Width (mm)
- 800
- External Height (mm)
- 938
- External Depth (mm)
- 220
- Throat Width (mm)
- 700
- Throat Length (mm)
- 719
- Throat Effective Aerodynamic Area (EAA) (F)* (m2)
- 0.41
- Opening Pressure (PA)
- 450
FAQs
Have a question about the Y Series?
Have a questions we didn't answer? Get in touch.
Yes, effective natural ventilation design considers factors such as building orientation, prevailing wind directions, window placement, and the incorporation of features like operable windows, vents, and thermal mass to optimise airflow. These are the key focuses we will look for to ensure you will get the most out of your ventilation. If you have other goals and objectives you need to meet, please speak with our staff so we can make recommendations for considerations to make.
The level of servicing and maintenance your system requires depends on the type of system you have, your building conditions, and whether it is fixed or operable.
Our expert technicians will take care of all of this for you, providing you with a comprehensive servicing and maintenance schedule that covers all requirements – removing any worry about non-compliance or the risk of system failure in an emergency.
As we design and engineer all our products, we know exactly how to keep them operating as well as the day they were installed, even after months of intense, heavy-duty industrial venting.
They change often depending on the time of the year. Every product is made in-house located in Picton, NSW. Since all products are customisable, we normally ask for a 6-week lead time to ensure a timely delivery.
