Z Series (Roof)

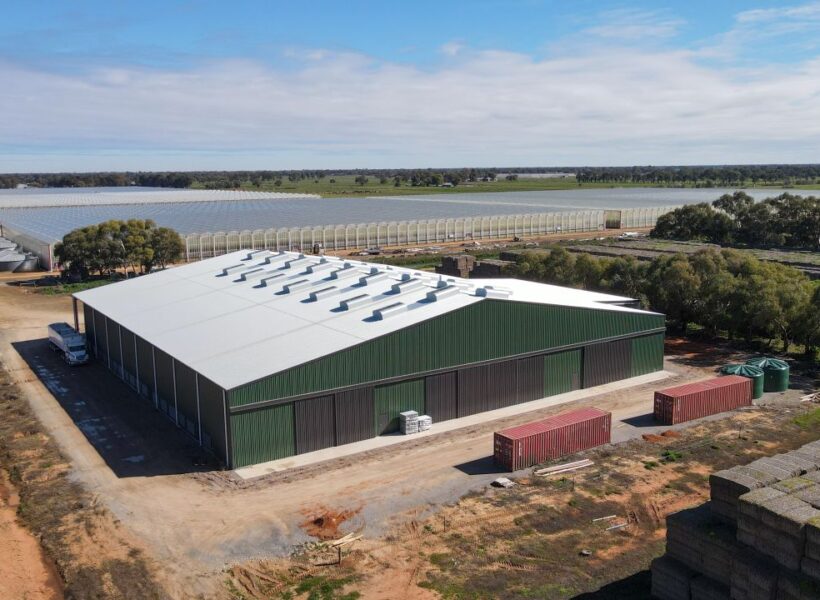

Z Series roof-mounted louvres are one of the easiest ways to naturally ventilate a building, while also providing optimal protection from fire, heat and smoke.
Heat, Fire & Smoke Ventilation Solution
Airocle’s Z Series roof ventilation features an engineered design for optimal aerodynamic performance and is fully fire-certified.
The Z Series roof louvres can be utilised either as a stand-alone ventilation scheme or can be linked together with our wall ventilators. Our units offer innovative, aesthetically pleasing designs and are stringently tested to all relevant Australian Standards.
These louvres are a great choice for when a reliable, cost-effective, ‘green’ and sustainable natural ventilation scheme with added fire protection is required.
Airocle’s Z series are operable, roof-based louvres perfect for a wide range of applications.
The Z Series roof louvres can be utilised either as a stand-alone ventilation scheme or can be linked together with our wall ventilators. Our units offer innovative, aesthetically pleasing designs and are stringently tested to all relevant Australian Standards.
These louvres are a great choice for when a reliable, cost-effective, ‘green’ and sustainable natural ventilation scheme with added fire protection is required.
Airocle’s Z series are operable, roof-based louvres perfect for a wide range of applications.
Key Benefits
Why Choose Airocle Z Series Roof Louvres
Optimal airflow
Exceptionally crafted to facilitate robust airflow for ventilation and smoke exhaust, while mantaining the low-profile
Energy efficient
Airocle’s innovative design principles and superior construction methods mean total energy usage and associated costs are reduced.
CSIRO & NATA Tested
NATA & CSIRO tested to AS2428 Australian Standards: Rain & Wind, Fire, and Airflow
Compliant to AS 2427
Materials and construction compliant to AS 2427 for Smoke & Heat release vents
Effective & Reliable
All our rotary vents are compliant with the Building Code of Australia (BCA). Not only this, but they’re certified by leading research centres - CSIRO and NATA - for performance, reliability, and durability.
Economical
Airocle engineered construction provides robust, long-lasting and trouble-free ventilators that need minimal maintenance and repair.
Their superior design features maximise efficiency and offers continual service, even in adverse conditions.
Simple installation… Let us take care of it for you
Airocle’s continual investment in product innovation means we’re at the cutting edge of the natural ventilation industry while meeting the highest standards.
The Z Series louvres are able to be linked into fire control management systems. The system can then be provided with fire indication panels to allow environmentally-beneficial, passive air ventilation via either automatic or manual control.
Optional rain and drist sensors, wind monitors and a fire mode over-ride application allows for the Z Series louvres to work across a range of dynamic environments. Speak to our team for a personalised quote of installation.
Minimal Maintenance
Airocle’s Z Series roof louvres are easily installable by qualified tradesmen and are supplied with all necessary fixtures.
Once installed, the efficient natural design means they’re able to operate with very low running and maintenance costs.
This provides long-term operational savings for both the building or facility and the environment.
Adept at meeting your project requirements and exceeding expectations, our team of friendly experts is on hand to assist you in pinning down the exact requirements for your project or facility. Simply contact us for a no-obligation quote.
Specifications
Z Series Performance
Capacity Table
This table provides a useful reference for estimating airflow performance for the Z Series roof vents.
- Internal Opening Width
- 895
- Internal Opening Length
- 1040
- External Width
- 995
- External Height
- 1180
- External Depth
- 220
- Free Open Area (m2)
- 0.72
- Coefficient of Discharge (Cd)
- 0.65
- Effective Aerodynamic Area (m2)
- 0.46
- Pneumatic Actuator Options
- Yes
- Electric Actuator Options
- Yes
- Cyclone Rated Option
- Yes
FAQs
Have a question about the Z Series?
Have a questions we didn't answer? Get in touch.
Contact Us
Yes, effective natural ventilation design considers factors such as building orientation, prevailing wind directions, window placement, and the incorporation of features like operable windows, vents, and thermal mass to optimise airflow. These are the key focuses we will look for to ensure you will get the most out of your ventilation. If you have other goals and objectives you need to meet, please speak with our staff so we can make recommendations for considerations to make.
The level of servicing and maintenance your system requires depends on the type of system you have, your building conditions, and whether it is fixed or operable.
Our expert technicians will take care of all of this for you, providing you with a comprehensive servicing and maintenance schedule that covers all requirements – removing any worry about non-compliance or the risk of system failure in an emergency.
As we design and engineer all our products, we know exactly how to keep them operating as well as the day they were installed, even after months of intense, heavy-duty industrial venting.
They change often depending on the time of the year. Every product is made in-house located in Picton, NSW. Since all products are customisable, we normally ask for a 6-week lead time to ensure a timely delivery.
